Monitor Crystal: Quartz Crystal Microbalance (or QCM crystal) are being used in thin film evaporators. The change of mass is measured by the Quartz Crystal Microbalance and related to the change in frequency of the QCM crystal. FCD-Tech supplies various standard QCM crystal types at 5, 6 Mhz and 10MHz. Below are the standard types. If you require different electrode shapes for the QCM crystal contact us by email or contact form.



Model

Size (mm)

Nominal Frequency
(Reference Frequency)

Electrodes

Data Sheet

QCM 496-Ag

Quartz Crystal Microbalance (QCM crystal) Element (Balzers QS012 Style)


Ø 14 mm
quartz monitor crystal balzers qs012
5 MHz (4.96 MHz)
QCM crystal
Cr-Ag PDF datasheet

QCM 496-Ti

Quartz Crystal Microbalance (QCM crystal) Element (Balzers QS012 Style)


Ø 14 mm
quartz monitor crystal balzers qs012
5 MHz (4.96 MHz)
QCM crystal
side 1: Ti
side 2:Cr-Ag
PDF datasheet

QCM 496-Au

Quartz Crystal Microbalance (QCM crystal) Element (Balzers QS012 Style)


Ø 14 mm
quartz monitor crystal balzers qs012
5 MHz (4.96 MHz)
QCM crystal
Cr-Au PDF datasheet

QCM 500-Ag

Quartz Crystal Microbalance (QCM crystal) Element (Maxtek Style)


Ø 14 mm
quartz monitor crystal maxtec style


5 MHz (4.96 MHz)
QCM crystal
Cr-Ag PDF datasheet

QCM 500-Au

Quartz Crystal Microbalance (QCM crystal) Element (Maxtek Style)


Ø 14 mm
quartz monitor crystal maxtec style
5 MHz (4.96 MHz)
QCM crystal
Cr-Au PDF datasheet

QCM 598-Ag

Quartz Crystal Microbalance (QCM crystal) Element (Maxtek Style)


Ø 14 mm
quartz monitor crystal maxtec style
6 MHz (5.983 MHz)
QCM crystal
Cr-Ag PDF datasheet

QCM 598-Au

Quartz Crystal Microbalance (QCM crystal) Element (Maxtek Style)


Ø 14 mm
quartz monitor crystal maxtec style
6 MHz (5.983 MHz)
QCM crystal
Cr-Au PDF datasheet

QB5040-25.4DSP

Quartz Crystal Blanks for Quartz Crystal Microbalance QCM application


Ø 25.4 mm 5.040 MHz AT-cut
 Polished
PDF datasheet

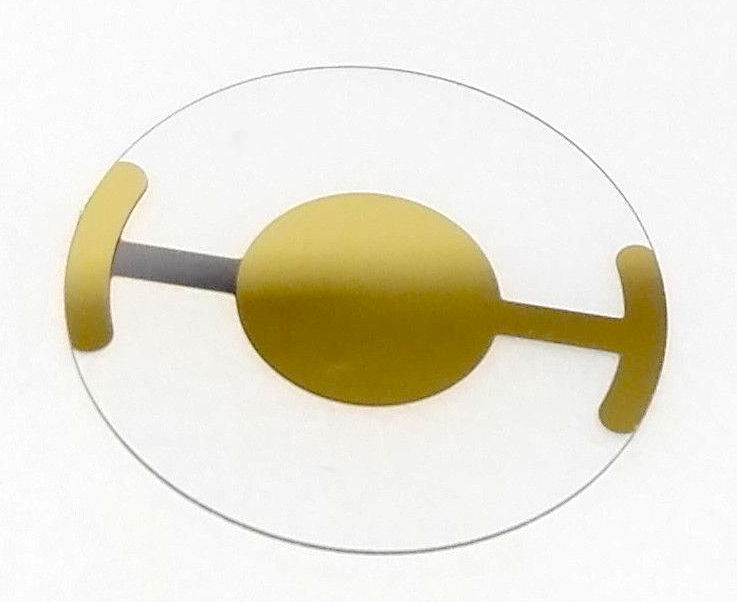

QCM1066-TiAu (polished)

Quartz Crystal Microbalance (QCM crystal)

Ø 14 mmqcm 1066 TiAu

10 MHz QCM crystal

AT-cut
 Polished
PDF datasheet



button request a quote

For questions about Quartz Crystal Mircobalance or request for a quotation click on the image, fill in the form and we will contact you soon

Wiki information about Quartz Crystal Microbalance or QCM crystal: click here
