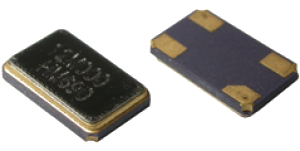

F5032A - 4 pad SMD Crystal (5.0 x 3.2 mm)

F5032A - 4 pad SMD Crystal (5.0 x 3.2 mm)

Optimize your electronic designs with the F5032A, a compact ceramic 4-pad SMD crystal package measuring just 5.0 x 3.2 x 0.8 mm. Operating within an 8MHz to 52MHz frequency range in fundamental mode and up to 200MHz in 3rd overtone mode, the F5032A offers versatile options for initial frequency stability and temperature tolerance. Ideal for Bluetooth, wireless applications, and mobile phones, it's the perfect choice for high-performance, space-saving solutions.

FEATURES

  • Ultra thin and miniature 4 pad SMD Crystal package
  • Completely sealed type with metal case sealed on ceramic board
  • High resolution frequency tolerance is obtained
  • Frequency range 8MHz - 200MHz
  • Options for initial tolerance and temperature stability
  • Applications: Bluetooth, Wireless Applications, Mobile phones, ...

Request a quote



SPECIFICATIONS:

Frequency range: 8MHz - 200MHz
Package size: 5.0 x 3.2 x 0.8 mm 4-pad ceramic
Modes: AT cut, fundamental 8MHz - 52MHz, 3rd Overtone 50 - 200MHz
Standard ESR:
  • 8MHz - 9MHz, fundamental, 150Ω max.
  • 10MHz - 14MHz, fundamental, 80Ω max.
  • 15MHz - 19MHz, fundamental, 50Ω max.
  • 20MHz - 52MHz, fundamental, 40Ω max.
  • 50MHz - 200MHz, 3rd Overtone, 80Ω max.
Outline dimensions:



SMD Crystal F5032A


Click for specification sheet
